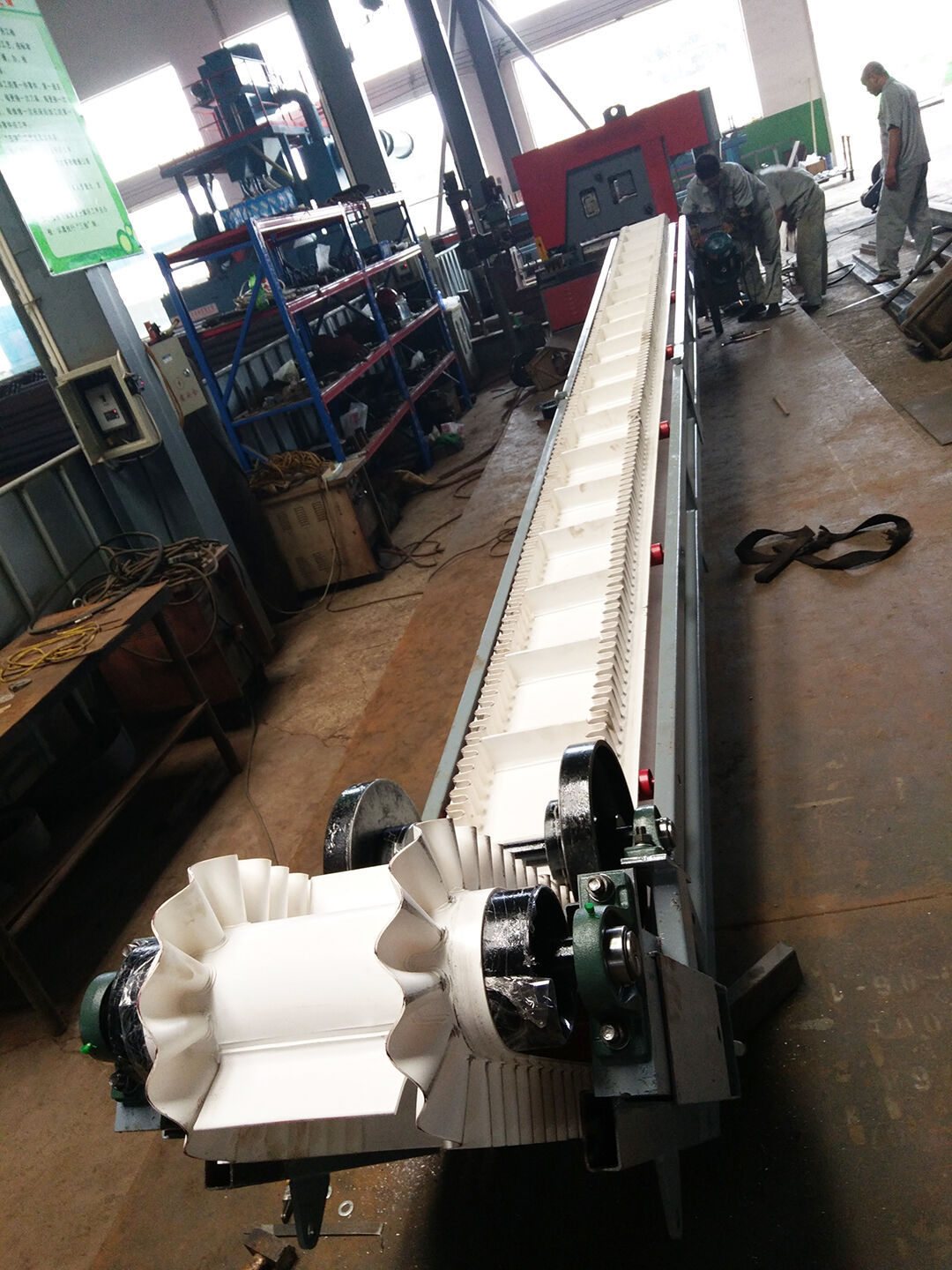

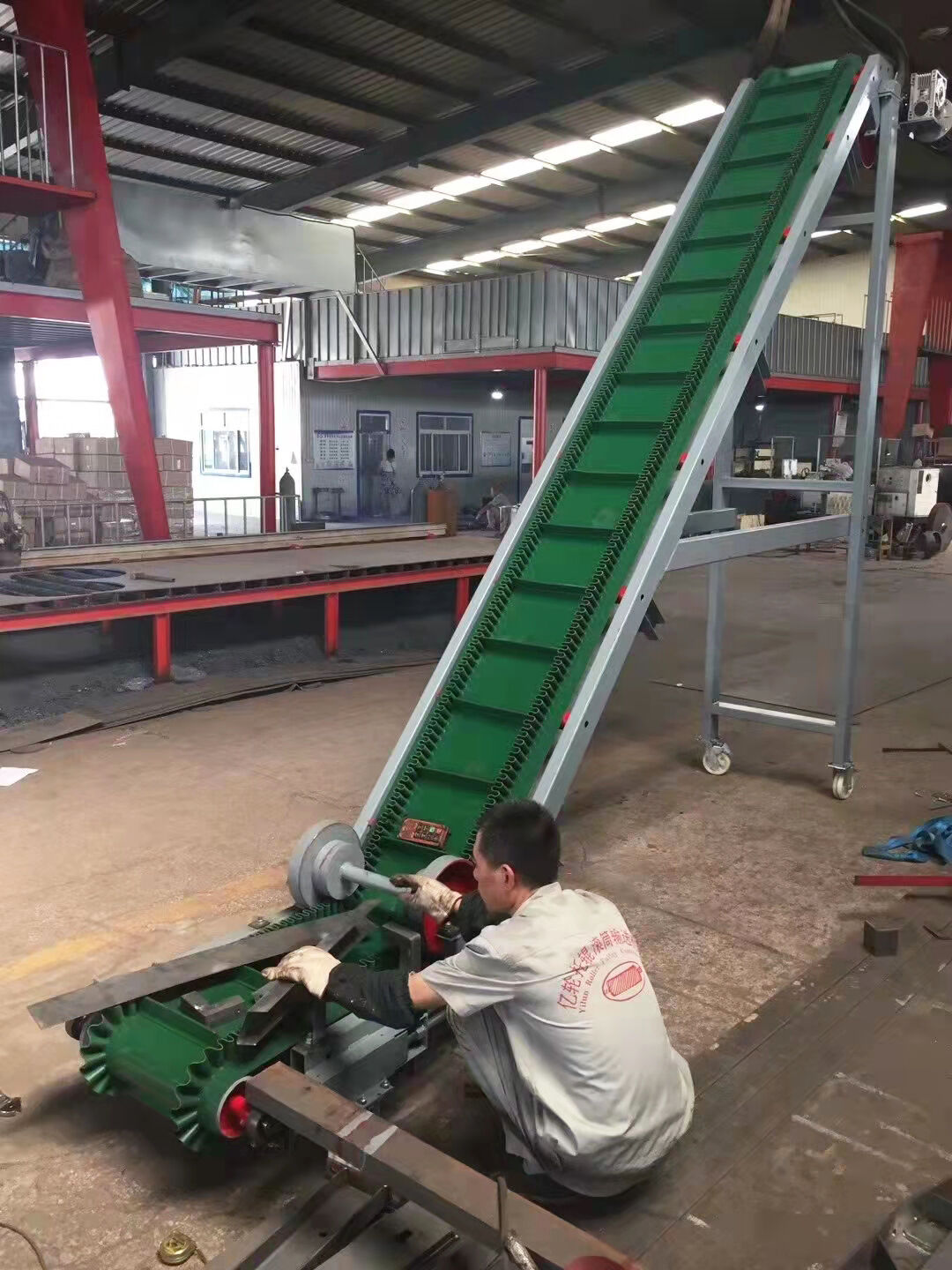

Product Photograph

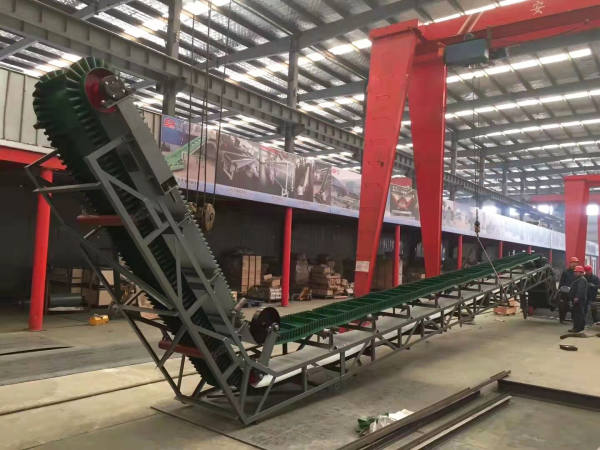

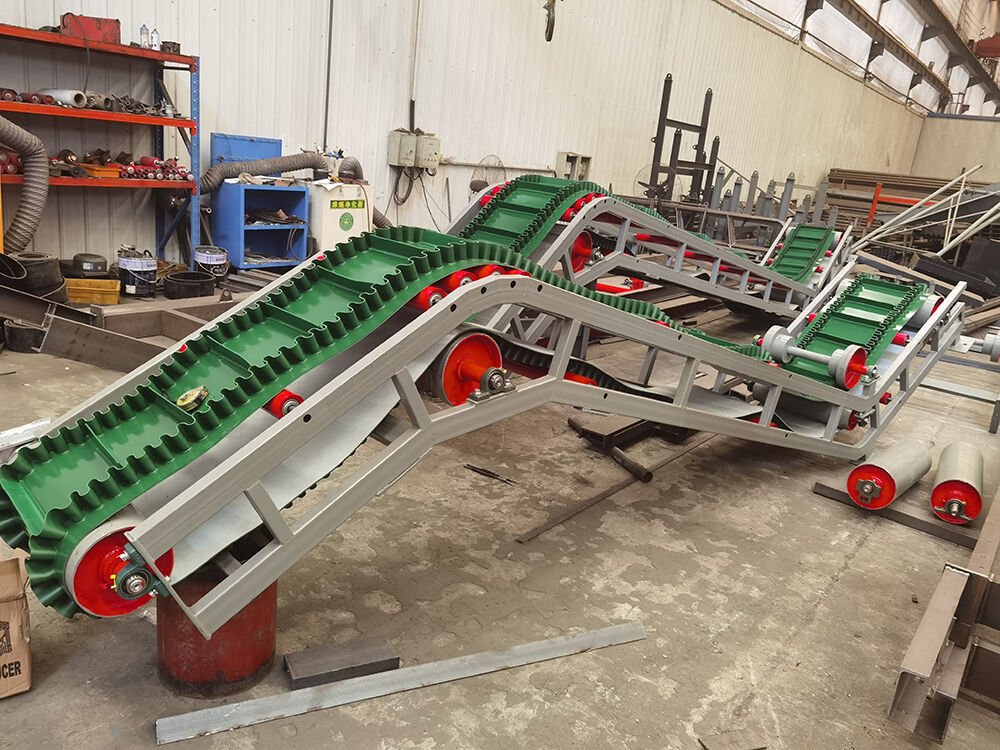

DJA, DJ, DJC type large inclination side wall belt conveyor

This series of large inclination PVC sidewall belt conveyors are general-purpose continuous conveying equipment for bulk materials, which can be widely used in coal, food, building materials, chemical, hydropower and metallurgy and other sectors. The ambient temperature is -19℃~+40℃. Transport various bulk materials with a bulk density of 0.5-2.5t/m3. For conveying materials with special requirements, such as: high temperature, acid, alkaline, oily substances or organic solvents and other ingredients, special rib conveyor belts are required. Conveying inclination is any angle within the range of 30°~90°, and the maximum conveying material particle size is 400mm.

Features:

1. Conveying bulk materials with a large inclination angle can save a lot of equipment area and solve the conveying angle that cannot be achieved by ordinary and patterned belt conveyors.

2. The mechanized belt conveyor conveys materials, and the overall investment cost is low, which can save 20%-30% of the investment cost, and the effect is better in the concrete and coal industries.

3. Compared with ordinary conveyors, bucket elevators, and scraper conveyors, this model has superior comprehensive technical performance.

4. The conveying capacity is large, can up to 2500m3/h, and the vertical lifting height is up to 200m.

5. When conveying materials vertically, the particle size can be as large as 400mm.

6. Smooth transition from horizontal to inclined (or vertical).

7. Low energy consumption, simple structure and convenient maintenance.

8. The tape has high strength and long service life.



Main technical parameters of large inclination rib belt conveyor

(type DJA、DJ、DJC、DJF)

BW

Height of sidewall

Angle

speed

Space clapboard /Capacity (m3/h)

Power

(mm)

(mm)

(°)

(m/s)

 DJA/DJ

 DJC

 DJF

 (kw)



400



60

30~90



0.8~2.0



126/12

126/4

126/20



1.5~18.5



80

126/22

126/8

126/27

100

126/32

126/11

126/33



500



80



0.8~2.0



126/31

126/11

126/37



1.5~30



100

126/45

126/16

126/45

120

252/34

126/25

126/55



650



100



0.8~2.0



126/63

126/23

126/63



2.2~45



120

252/48

126/35

126/77

160

252/66

252/24

252/85



800



120



0.8~2.5



252/63

126/46

126/102



3.0~160



160

252/91

252/33

252/115

200

378/100

252/55

252/148



1000



160



1.0~2.5



252/122

252/44

252/155



5.5~315



200

378/134

252/73

252/199

240

378/200

252/110

252/244



1200





160



1.0~3.15





252/152

252/56

252/195



5.5~560





200

378/168

252/92

252/250

240

378/251

252/138

252/306

300

336/354

336/134

336/335



1400





200



1.0~3.15





378/202

252/111

252/301



7.5~560





240

378/302

252/166

252/368

300

336/431

336/163

336/408

400

420/637

420/250

420/566



1600





200



1.25~3.15





378/236

252/130

252/352



15~560





240

378/352

252/194

252/430

300

336/508

336/192

336/482

400

420/751

420/295

420/668
