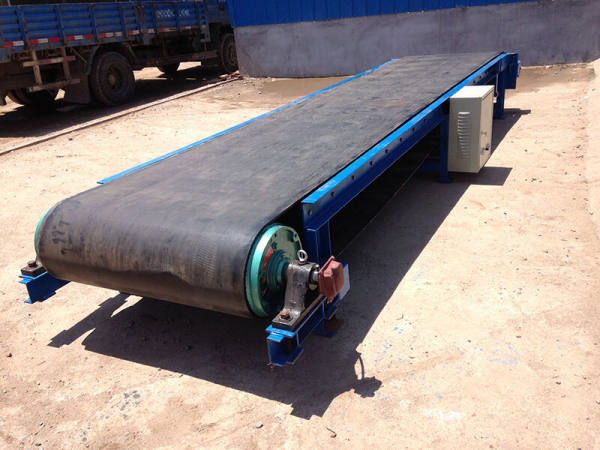

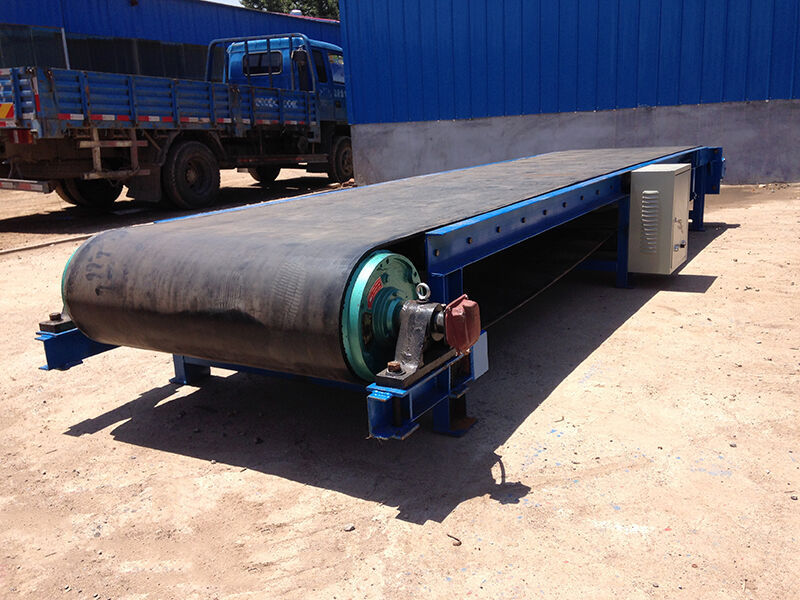

Product Photograph

1.1 Product Introduction

Horizontal fixed conveyor is a general purpose belt conveyor, which can be used in chemical, metallurgy, coal, hydropower, building materials and other sectors to transport various bulk, granular and other bulk shapes with a bulk density of 0.5~2.5t/m3 Materials, and can also convey finished objects.

The belt conveyor has two types (fixed & mobile) according to its support structure: according to the conveyor belt material, there are rubber belts, PVC belts and steel core belts. The working environment temperature of the conveyor is generally between -15℃--+40℃, and the material temperature should not exceed 80~100℃;

The heat-resistant rubber belt can transport high-temperature materials below 120°C. When the material temperature is higher, the belt conveyor is not suitable. When transporting materials with acidic, alkaline oils and organic solvents, oil-resistant, acid- and alkali-resistant rubber belt plastic belts are required.The width of TD75 belt conveyor can be divided into: 500~2400mm. The user can calculate the layout of the conveyor and the selected belt width, canvas layer number and thickness of the belt according to the conveying length of the belt conveyor, the type of material, the bulk density, the conveying volume, the conveying length and other factors.


1.2 basic structure

Compared with other bulk material transportation methods, TD75 fixed belt conveyor has the following structure:

1.   Drive part: The drive device is composed of a drive frame, a motor, a high-speed coupling, a reducer, and a reduction coupling. According to the layout requirements: the drive device has two types: left-mounted and right-mounted.

2.   Rolling part: It is divided into two categories: drive roller and reversing roller.

3.   Pulley part: It is divided into two: drive pulley and Tail pulley.
 4.Roller part: carrier, parallel, self-aligning and buffer rollers, etc.

5. Cleaning part: divided into spring cleaner and empty section cleaner.

6. Unloading part: It is divided into fixed plow unloader and electric unloader.

7. Braking part: There are two kinds of belt backstop and roller backstop.

8. Accessories: the cover, guide trough, funnel, etc.

1.3 Product specifications and main parameters

B(mm)

Belt   speed V(m/s)

0.8

1

1.25

1.6

2

2.5

3.15

4

4.5

5

5.6

6.5

Angle:0-22°

Capacity   Q(m³/h)

500

69

87

108

139

174

217







650

127

159

198

254

318

397







800

198

248

310

397

496

620

781






1000

324

4050

507

649

811

1014

1278

1622





1200


593

742

951

1188

1486

1872

2377

2674

2971



1400


825

1032

1321

1652

2065

2602

3304

3718

4130



1600





2186

2733

3444

4373

4920

5466

6122


1800





2795

3494

4403

5591

6291

6989

7829

9083

2000





3470

4338

5466

6941

7808

8676

9717

11277

2200







6843

8690

9776

10863

12166

14120

2400







8289

10526

11842

13158:

14737

17104
