1.1Production Introduction

      The pattern conveyor belt is composed of a belt body and a pattern part. Because of the different materials to be transported and the inclination of the conveyor, the shape and height (depth) of the pattern are required to be different. The types of commonly used pattern conveyor belts are as follows:

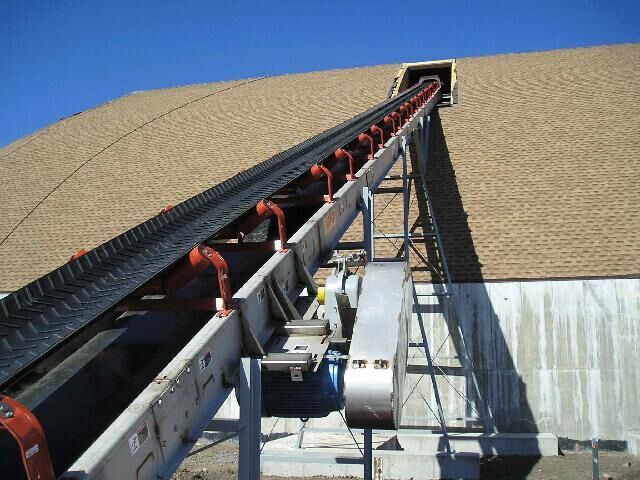

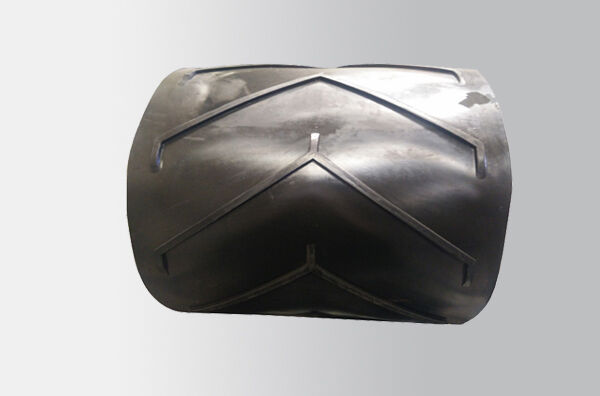

      Herringbone pattern　　

      Features: There is a "herringbone" pattern on the belt surface that is higher than the belt body. The pattern can be open or closed. Each pattern can be divided into three types: high, medium and low.

      Application: Suitable for conveying powder, granular, and small materials with an inclination angle of ≤40 degrees, and also for conveying bagged materials.

Striped pattern

      Features：There are striped patterns on the belt surface that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.

　　Application: It is suitable for the horizontal conveying of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern.

Grainy pattern

      Features：The belt surface has a granular pattern that is higher than the belt body or recessed into the belt body, and the pits can also be made into a square hole shape or a prismatic shape and a cloth pattern shape.

      Application: The convex grain pattern is suitable for conveying soft packaging or materials requiring gripping force (such as cardboard boxes) or non-sliding conveying.

      pit-shaped granular pattern is suitable for conveying granular materials with an inclination angle of ≤45 degrees.

Fan pattern

      Features：There are half-sector (or 1/4 round) patterns on the belt surface. When the tape is grooved, the pattern is combined into a fan shape (or semicircle), which belongs to the high pattern type.

      Application: It is suitable for conveying powder, granule and lump materials at a large inclination angle of ≤60 degrees.

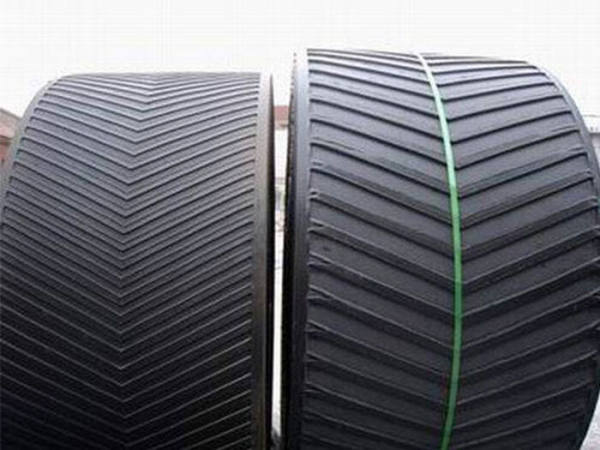

      The pattern conveyor belt is composed of two parts: the base belt and the pattern. Because of the different materials to be transported and the different inclination angles of the conveying, the pattern shape and height are required to be different. Commonly used pattern conveyor belt varieties such as: herringbone pattern conveyor belt, eight-shaped pattern conveyor belt, herringbone pattern conveyor belt, U-shaped pattern conveyor belt, cylindrical pattern conveyor belt, pit pattern conveyor belt and so on. Or designed according to user requirements, suitable for conveying powder, granular, and bulk materials with an inclination angle of less than 30 degrees.
