DT II fixed belt conveyor
DT II fixed belt conveyor
Product introduction

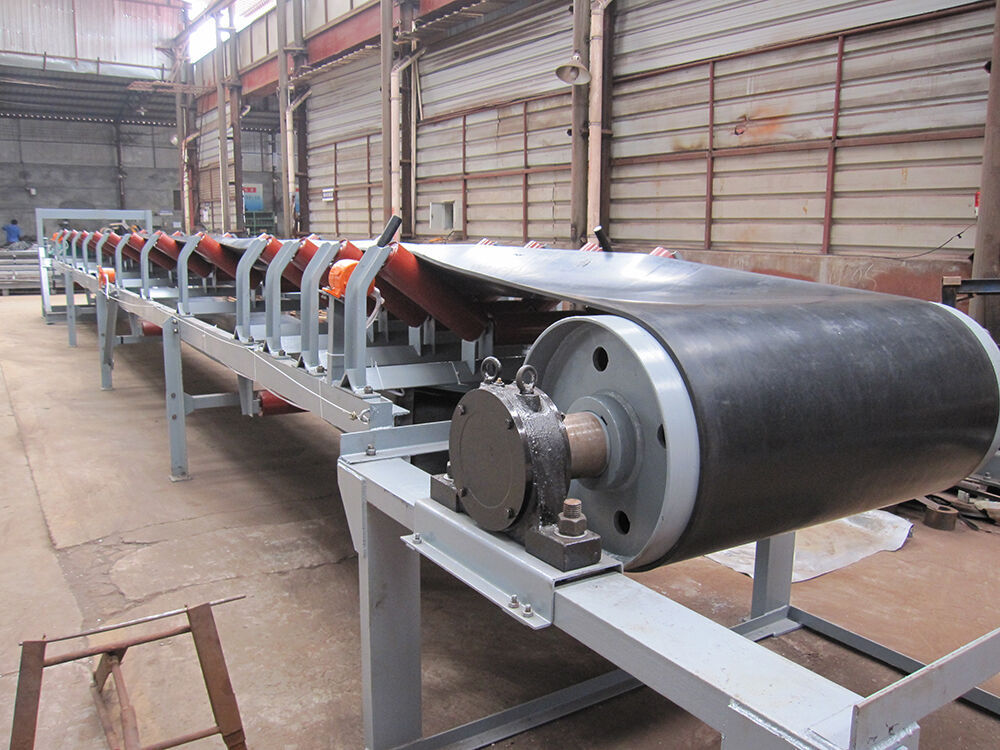

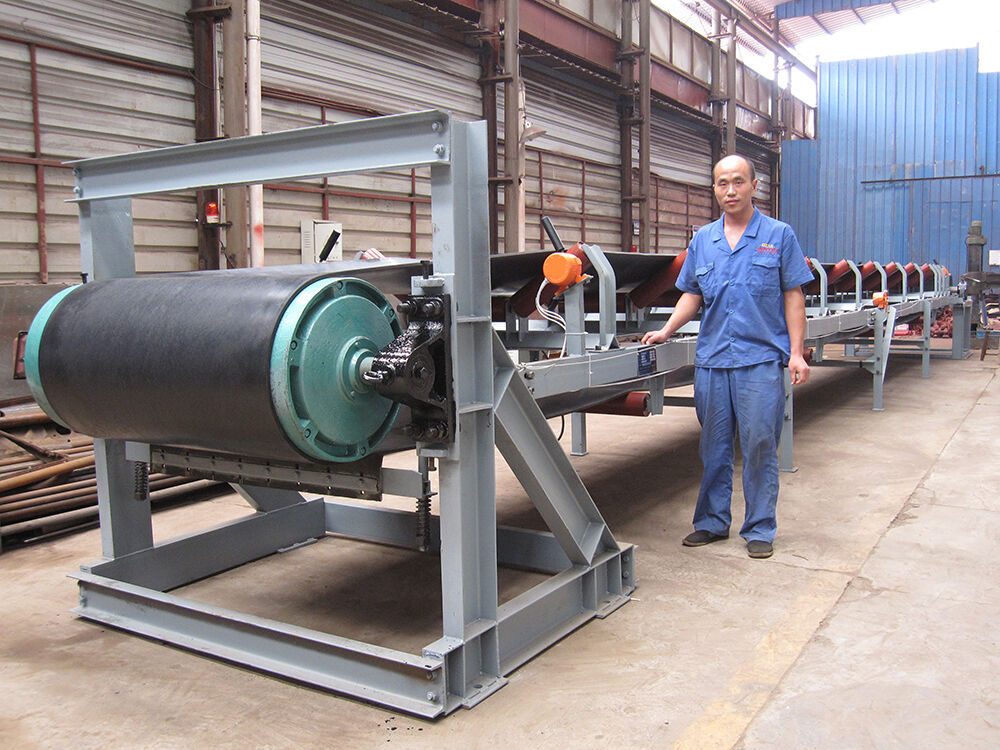

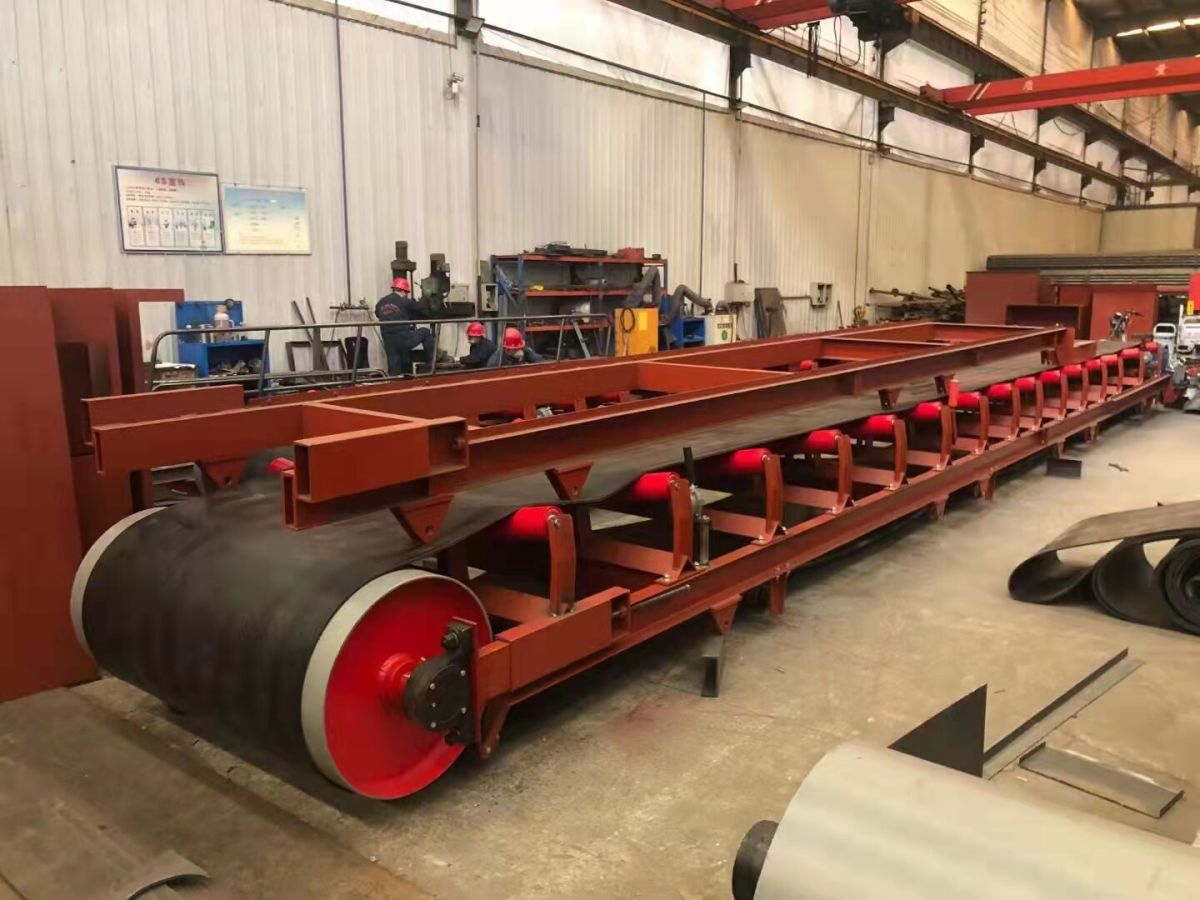

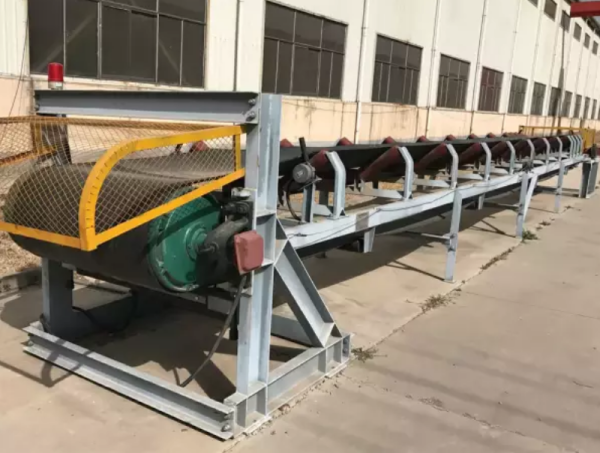

Product Photograph

1.1 Product Introduction

  DTⅡfixed belt conveyor is a general-purpose series product, which can be widely used in metallurgy, coal, transportation, electric power, building materials, chemical industry, light industry, food and machinery and other industries. It can transport various bulk materials with a bulk density of 500-2500kg/m3. Applicable ambient temperature is -20~40℃ for shaped materials and finished articles. It has the characteristics of high production efficiency, large transportation volume, low energy consumption, continuous long-distance transportation, stable and reliable operation, low noise, low pollution, simple structure, and low operating cost.


1.2 Characteristics

Compared with other bulk material transportation methods, the fixed belt conveyor has the following advantages:

1. Reliable operation and can be used in important occasions requiring continuous operation;

2. Long transportation distance, large transportation volume, easy to realize automation and centralized control;

2. There is almost no relative movement between the material and the conveyor belt, with low running resistance and low power consumption;

3. The wear and breakage rate of the cargo is small, which is beneficial to reduce the production cost;


1.3Product specifications and main parameters

B(mm)

Belt   speed V(m/s)

0.8

1

1.25

1.6

2

2.5

3.15

4

4.5

5

5.6

6.5

Angle:0-22°

Capacity   Q(m³/h)

500

69

87

108

139

174

217







650

127

159

198

254

318

397







800

198

248

310

397

496

620

781






1000

324

4050

507

649

811

1014

1278

1622





1200


593

742

951

1188

1486

1872

2377

2674

2971



1400


825

1032

1321

1652

2065

2602

3304

3718

4130



1600





2186

2733

3444

4373

4920

5466

6122


1800





2795

3494

4403

5591

6291

6989

7829

9083

2000





3470

4338

5466

6941

7808

8676

9717

11277

2200







6843

8690

9776

10863

12166

14120

2400







8289

10526

11842

13158:

14737

17104
