Radial Telescopic Shiploader
Radial Telescopic Shiploader
Product introduction
Product Photograph

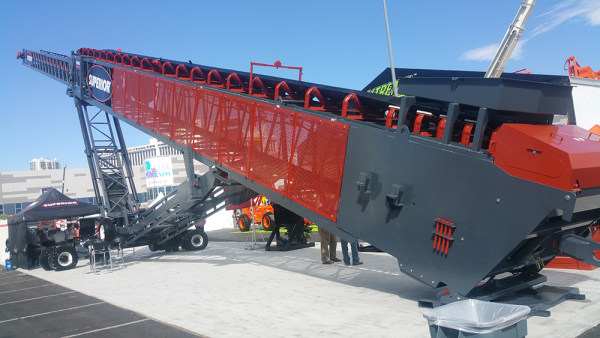

Radial Telescopic Shiploader

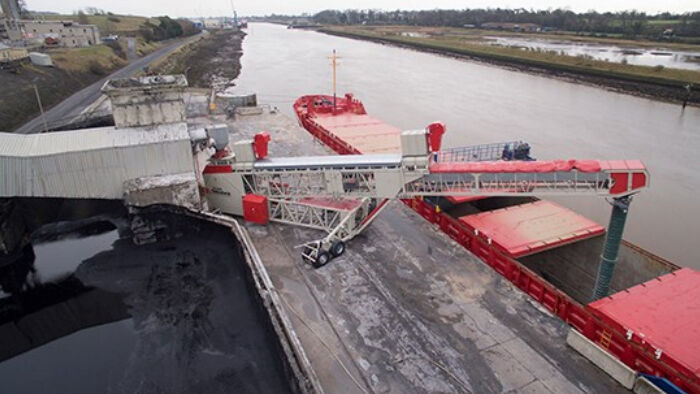

The Radial Telescopic Shiploader offers unrivalled mobility and flexibility when loading a vesse

Easily trim 3 x hatches from one single feed-in position

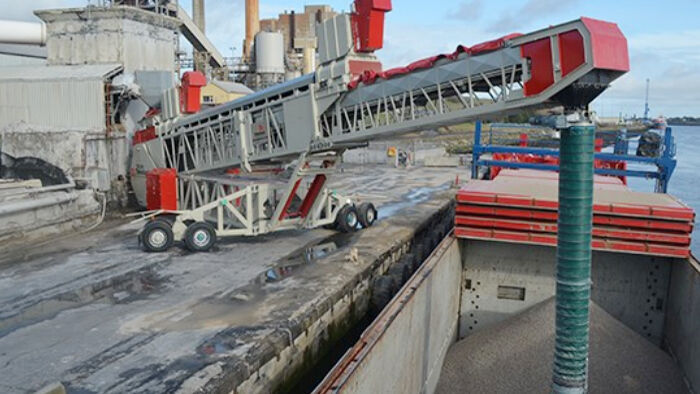

Parallel driven wheels for quick 'hatch to hatch' times, along with telescopic to 'pass' infrastructure on geared vessels

Telescopic features ensures unrivalled trimming capabilities

Fully sealed / dust containment/dust extraction options

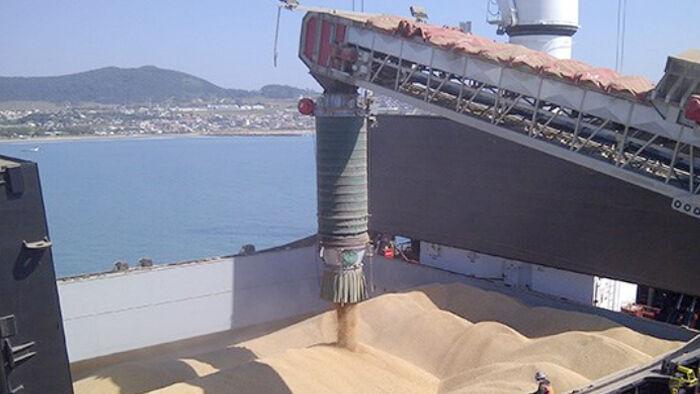

Telescopic and Cascade Chutes available

Mobility to move 'Off-site' when not in use



DESCRIPTION

The mobile radial telescopic shiploaders ensure unrivaled flexibility when loading a vessel. The radial and telescopic features allow the operator to easily trim the hatch or multiple hatches from one feeding position reducing hatch change times and production downtime. They can load vessels up to Panamax size with ease and offer a complete range of mobility, chutes and dust suppression / extraction options for specific applications and materials

FEATURES & BENEFITS

· Radial and Telescopic features offer unrivaled trimming capabilities for most sized vessels.

· Mobility means Flexibility - Complete on-site mobility including driven wheels, tracks, rails and a combination to suit complete range of Jetty/quayside designs.

· Complete Dust Extraction / Suppression options for handling complete of materials,

· Fully sealed feed-in / transfer and discharge points to eliminate spillage on site.

· Loading rates up to 3,000TPH.

· Fully extended length's up to 58 metres (190ft).

· Typically lower capital investment than fixed Shiploading systems.

· Lead Times can range from 10 - 30 weeks.

· Reduced civil requirements on site.

· Land / Sea Based Systems are available.

· Eliminate double handling of material in Port /Inland Terminal

APPLICATIONS

Mobile Shiploaders / Unloaders designed for loading Barges, Coasters, Handysize, Handymax, Panamax Vessels

Complete mobility for use in differing sized ports and loading complete range of vessels

Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

Can be easily fed from fixed conveyor systems, wheel loaders, trucks, overhead conveyors, tripper conveyors and many more systems.

OPTIONS

Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted

Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.

Sealing of all transfer points including side plates and under-trays

Electrical Integration – Communication interlinks, radio remote controls, Fully integrated generators, Ethernet connections and many more.

Marine Specification paint finish
