Screw conveyor
Screw conveyor
Product introduction

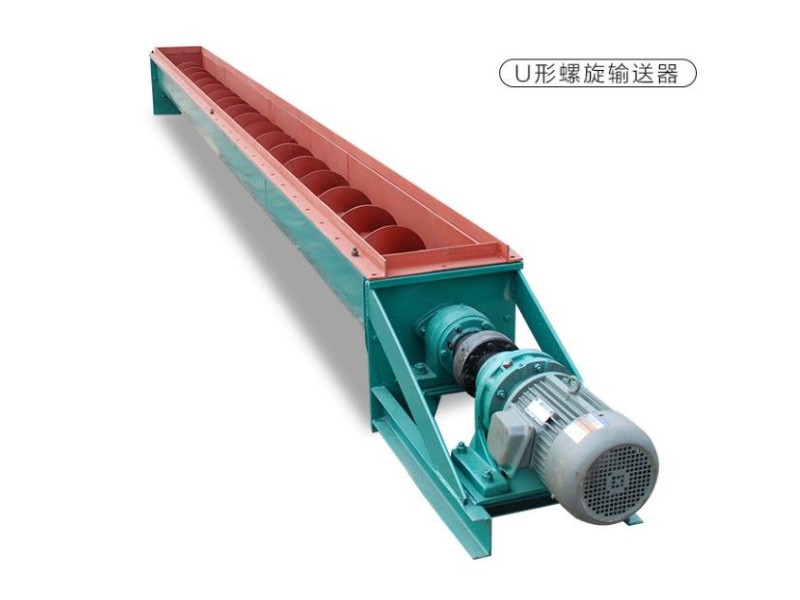

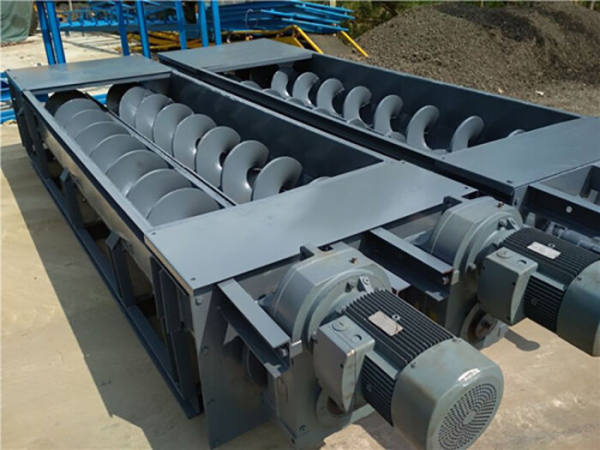

Product Photograph

1.1Product Introduction

Screw conveyor is a kind of machinery that uses a motor to drive spiral rotation and push materials to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically, and has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance, and convenient closed transportation.



1.2 Specifications

SIZESPECIFICATION


LSY100

LSY120

LSY140

LSY160

LSY200

LSY250

LSY300

LSY400

Diameter Φ(mm)

90

115

135

163

185

237

285

362

Rotating speed(r/min)

300

300

300

308

260

200

170

170

Diameter Φ(mm)

108

133

159

194

219

273

325

402

Max capacity (t/h)

7

10

15

25

40

60

90

120

Max L(mm)

8

10

12

15

18

25

25

25

Angle (a)

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

Motor

Model

L≤9

Y90S-4

Y100L1-4

Y100L2-4

Y132S-4

Y132M-4

Y160L-6

Y180M-4

Y180M-4

power

1.1

2.2

3

5.5

7.5

11

18.5

18.5

size

L>9

Y100L1-4

Y100L2-4

Y112M-4

Y132M-4

Y160M-4

Y180L-6

Y180L-4

Y180L-4

power

2.2

3

4

7.5

11

15

22

22
